Outdoor Fixed LED Display: A Solid Carrier for Urban Outdoor Information Dissemination

Outdoor fixed LED displays are a robust solution for dynamic information and advertising, combining advanced technology with resilience. Proper selection and maintenance ensure optimal performance and a strong return on investment.

What is an Outdoor Fixed LED Display?

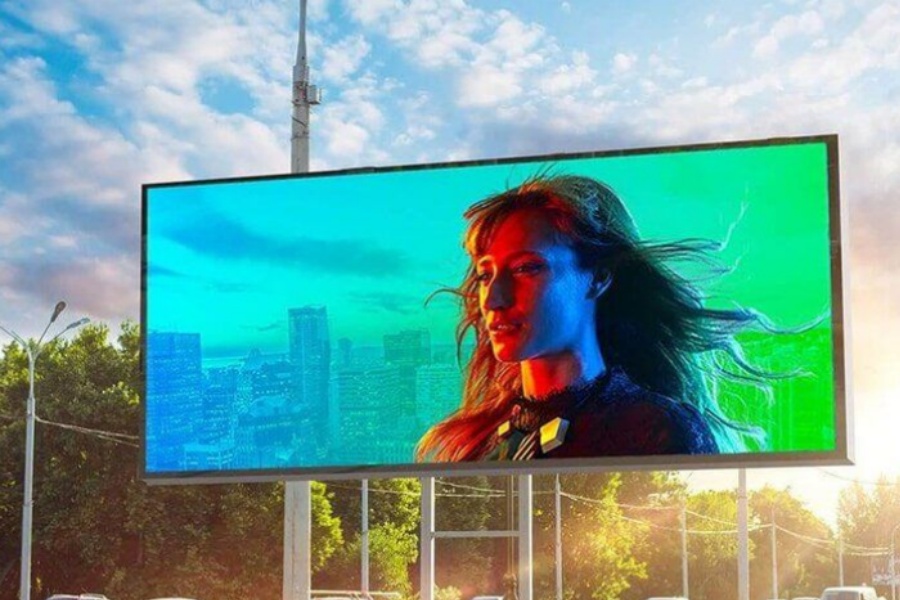

The outdoor fixed LED display is a large – scale LED display device designed specifically for outdoor environments and installed and fixed through steel – structure brackets or walls. Its core components cover several key parts:

LED Display Modules: Composed of high – brightness LED lamp beads, they form pixel units with a high refresh rate and high gray – scale level, ensuring smooth images and rich colors. Depending on the viewing distance, common pixel pitches range from P6 – P20, balancing clarity and cost.

Drive and Control System: It includes drive chips and control cards, precisely controlling the on – off and brightness of each LED lamp bead to achieve stable playback of videos, images, and other content. It also supports remote transmission and real – time monitoring.

Protective Structure: Designed with an IP65 or higher protection level, the outer shell has waterproof, dust – proof, and UV – resistant functions. Inside, it is equipped with devices such as cooling fans and heat – dissipation fins to ensure stable operation in harsh environments such as high temperatures, heavy rain, and sandstorms.

Installation Frame: Made of high – strength steel structure or aluminum alloy materials, it is calculated and designed to resist wind and earthquakes, capable of withstanding complex outdoor weather conditions and ensuring the firm fixation of the display.

Core Advantages of Outdoor Fixed LED Displays

High – Brightness and Wide – Angle Display

Using high – brightness LED lamp beads, the brightness can reach over 5000 cd/㎡. Even in strong sunlight, the picture remains clearly visible. The horizontal and vertical viewing angles can reach 140° – 160°, ensuring that audiences in different directions can have a good viewing experience and effectively expanding the scope of information dissemination.

Stable and Reliable Outdoor Performance

The strict protective design enables it to withstand harsh weather. The waterproof design prevents rainwater from seeping in and damaging the internal circuit, and the UV – resistant coating prevents the screen from aging and fading. The heat – dissipation system can be intelligently adjusted to ensure the continuous and stable operation of the device in high – temperature environments, with a service life of up to 50,000 – 100,000 hours.

Flexible Content Management

It supports the playback of various formats of videos, images, and text. Through dedicated software, functions such as remote control, timed playback, and split – screen display can be achieved. Advertising operators or management departments can update content at any time to quickly respond to market demands or release emergency public information.

Energy – Saving and Environmental – Friendly

Compared with traditional outdoor billboards, LED displays consume less energy. Some products are equipped with an intelligent light – sensing system that can automatically adjust the brightness according to the ambient light, reducing power consumption. At the same time, LED lamp beads do not contain harmful substances such as mercury, meeting environmental protection requirements.

Application Scenarios of Outdoor Fixed LED Displays

Commercial Advertising Promotion

Installed on the outer walls of commercial streets, shopping centers, and office buildings, outdoor fixed LED displays are used to showcase brand advertisements, new product launches, promotional activities, etc. With their shocking visual effects, they attract consumers’ attention and enhance brand influence and commercial value.

Traffic Information Release

Installed in transportation places such as airports, railway stations, bus stops, and highways, they are used to display flight information, train schedules, bus routes, traffic navigation, etc., providing timely and accurate information services for travelers and improving traffic management efficiency.

Public Information Dissemination

In areas such as city squares, communities, and government service centers, they are used to release public information such as policy announcements, weather forecasts, public welfare publicity, and cultural activity notices, becoming an important window for communication between the government and the public and enhancing the level of urban information services.

Live Broadcasting of Sports Events and Activities

LED displays installed at large – scale stadiums and square activity sites can broadcast live event pictures and play event – themed content in real – time, creating a lively atmosphere, bringing an immersive experience to the audience, and expanding the dissemination scope of the event.

Precautions for Using Outdoor Fixed LED Displays

Installation and Site Selection

Site Assessment: Before installation, assess the bearing capacity of the site, lighting conditions, and the surrounding electromagnetic environment to ensure that the installation location meets building codes and information dissemination requirements.

Approval Process: Strictly follow urban planning and advertising management regulations to handle the approval procedures for outdoor display installation to avoid illegal construction.

Daily Maintenance

Regular Cleaning: Use special cleaning agents and soft cloths to wipe the surface of the display monthly to remove dust, bird droppings, and other stains, maintaining the display effect.

System Inspection: Check the display status of LED lamp beads, the operation of the drive and control system, and the working status of the cooling fan weekly. Conduct anti – rust and stability inspections of the steel structure quarterly to detect and handle potential hazards in a timely manner.

Safety Management

Lightning Protection Measures: A complete lightning – protection and grounding system is a necessary configuration for outdoor displays. Regularly test the grounding resistance to ensure the safe operation of the device during thunderstorms.

Emergency Response: Develop an emergency plan. In case of extreme weather or equipment failure, turn off the power of the display in a timely manner to avoid safety accidents.

Key Factors for Selecting Outdoor Fixed LED Displays

Display Performance

Pixel Pitch: Select an appropriate pixel pitch according to the viewing distance. For example, for a viewing distance of 10 – 50 meters, P8 – P12 can be selected, and for a distance of over 50 meters, P16 – P20 can be chosen, balancing the display effect and cost.

Brightness and Color: The brightness should reach over 5000 cd/㎡, and the color – gamut coverage should be over 100% sRGB to ensure that the picture has true and vivid colors.

Hardware Configuration

Control System: Adopt high – performance control cards and drive chips that support 4K ultra – high – definition video decoding and have functions such as multi – screen synchronous display and automatic fault detection.

Heat – dissipation Design: An efficient heat – dissipation system (such as heat – pipe heat – dissipation and intelligent temperature – controlled fans) can effectively reduce the device temperature and extend its service life.

Software Functions

Operation Interface: The supporting software should have a simple and intuitive operation interface, supporting functions such as content editing, timed playback, and split – screen management, making it easy for users to get started quickly.

Remote Management: Support remote monitoring, content updating, and device diagnosis via the network to improve operation and maintenance efficiency.

Brand and After – sales Service

Give priority to well – known brands in the industry such as LEYARD, Unilumin Technology, and Absen. Their products have more advantages in terms of technology research and development and quality control. Pay attention to the brand’s after – sales service, including a 3 – 5 – year warranty period, 24 – hour after – sales response, free installation and debugging, and regular equipment inspections.

Suppliers of Outdoor Fixed LED Displays

KSSDISPLAY focuses on the research and development and production of outdoor display devices and has accumulated rich experience in the field of outdoor fixed LED displays. Its products use self – developed high – brightness and energy – saving LED lamp beads and intelligent heat – dissipation technology. The brightness can reach 6000 cd/㎡, and energy consumption is reduced by 30%. The protection level reaches IP67, which can withstand extreme weather such as heavy rain and sandstorms. Through modular design, the installation efficiency of the equipment is increased by 50%, and the maintenance cost is reduced by 40%. KSSDISPLAY provides one – stop services from solution design, production and installation to full – life – cycle maintenance. It has provided high – quality outdoor displays for over 800 urban projects across the country. With its stable and reliable performance and professional services, it has become the trusted choice of many customers.
