Led Screen Floor

Innovative Integrated Design

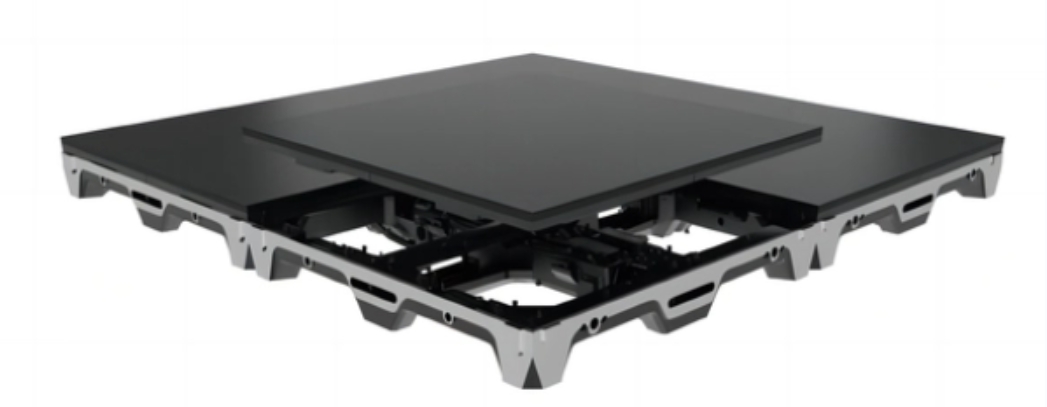

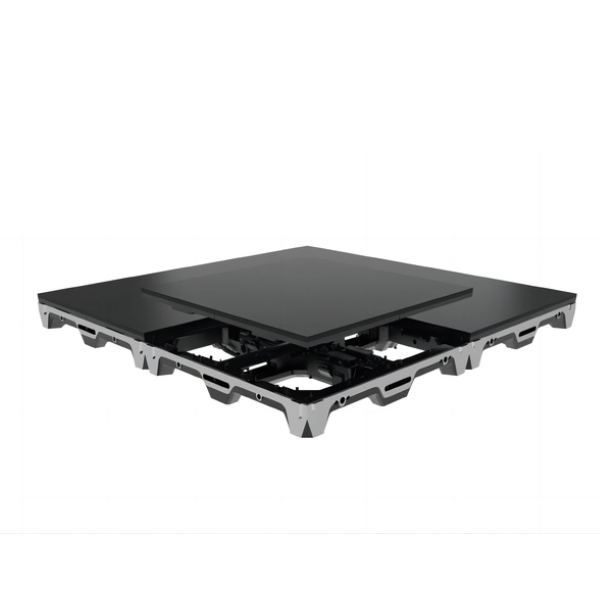

The MR series adopts the two-in-one integrated design of the cabinet and the frame, which makes the panel thinner and lighter, and the floor screen can be built without adding sub-frames at the bottom. The height of the panel can be adjusted by the anchors in case of the rough ground and the adjustable height is 0~20mm.

Pixel pitch of products: 2.5mm, 4.8mm

Panel dimension: 500(W)*500(H)mm

Strong Load Capacity

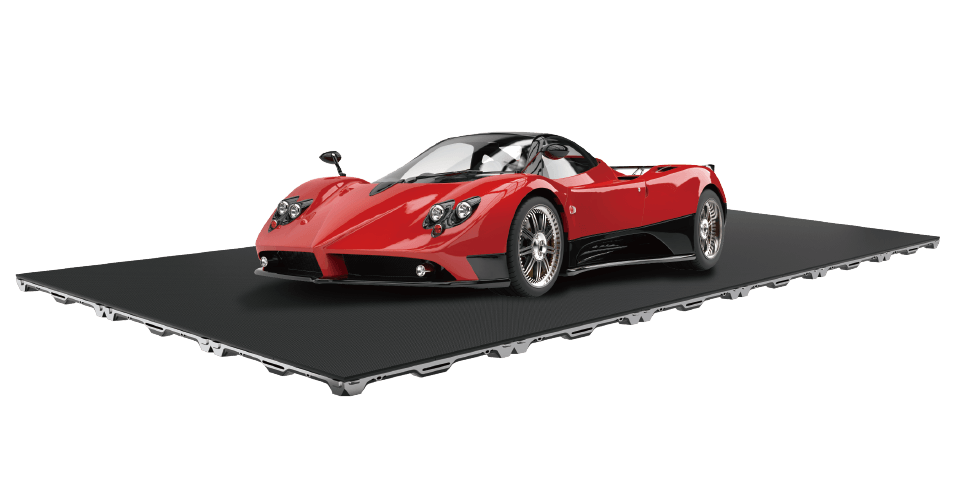

The MR4.8 adopts a high-strength frame design to ensure safety and firmness. The maximum load-bearing capacity is about 2500kg/㎡, which can greatly guarantee the safety of stage activities. The surface of MR4.8 is covered with matte or glassy finish, which is easy to clean as well as ensures the scratch resistant feature, creating a long-lasting wonderful staging effect.

Dedicated to xR Stage and Virtual Studio

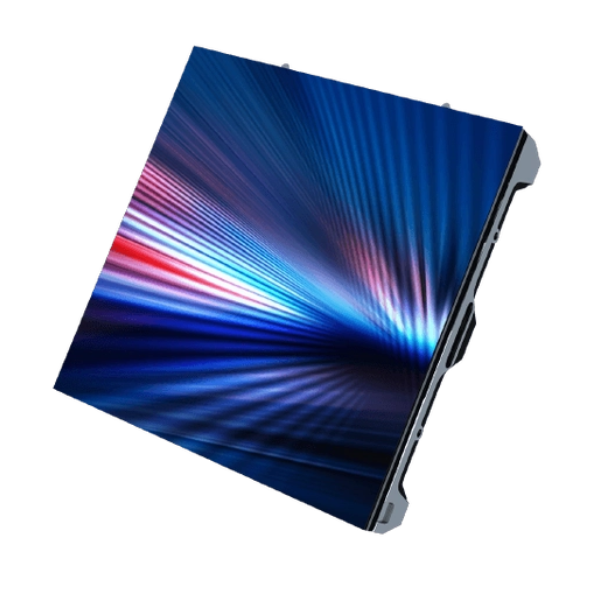

MR2.5 adopts GOB packaging process, which can make the display effect more delicate. It features a deep black non-reflective surface for better in-camera performance and is recommended to combine with the backdrops with a pixel pitch of 2.5mm to create stunning xR stages, virtual studios, etc. In addition, the MR4.8 matte version, with its 16bit grayscale, high refresh rate of 7680Hz, and high frame rate up to 251Hz, can build a floor display with excellent display effects for virtual production scenes, especially the xR stage.

Installation and Maintenance

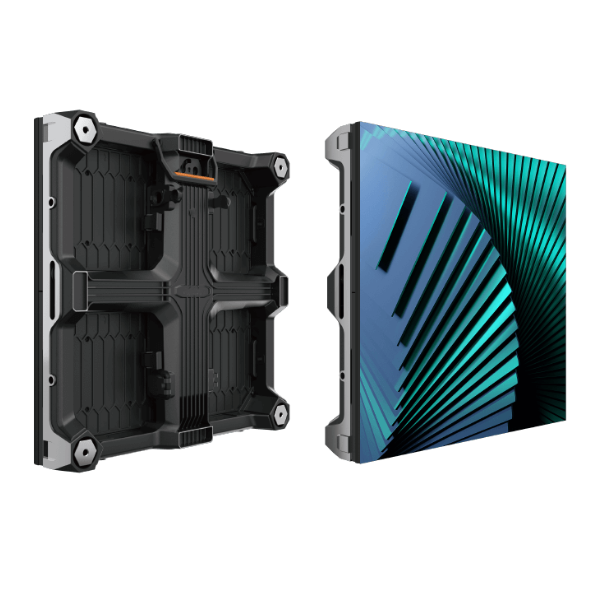

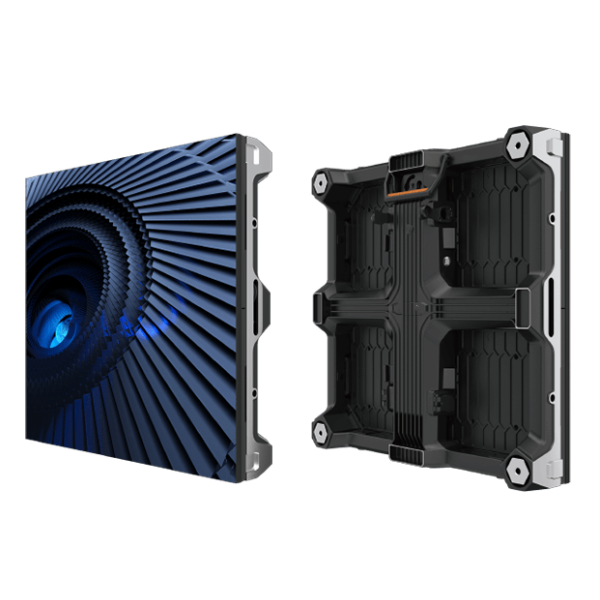

As a professional floor display solution, the MR series supports front installation, making it easier for users to operate. The modules and power box support front maintenance, which is convenient for later service.



Optional Interactive Function

The MR4.8 interactive matte version incorporates built-in sensor chips, which can quickly identify triggered action and respond in real time, bringing a pleasant and immersive interactive experience. Panels with built-in sensor chips can be assembled with general MR panels to make more creative effects.

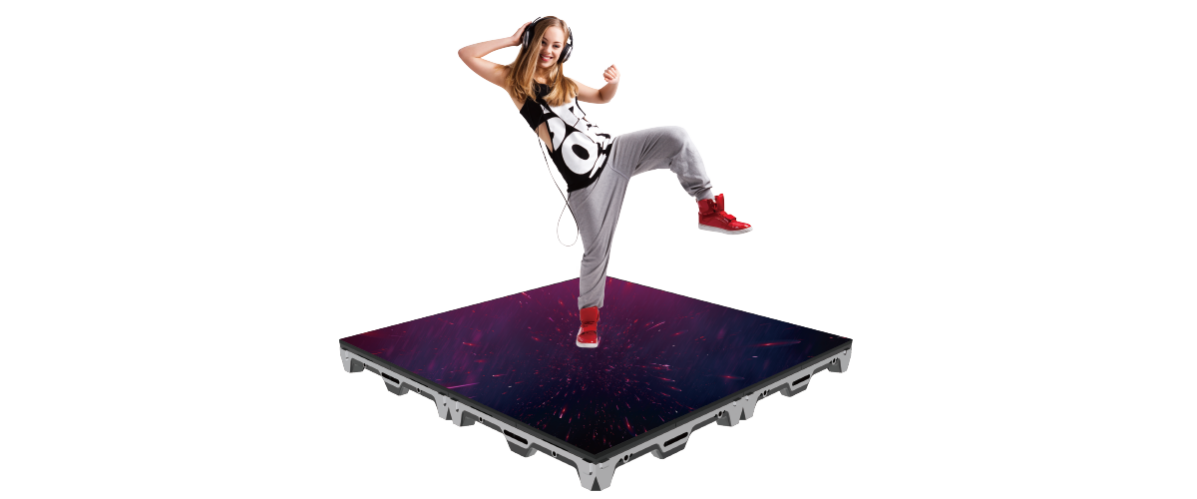

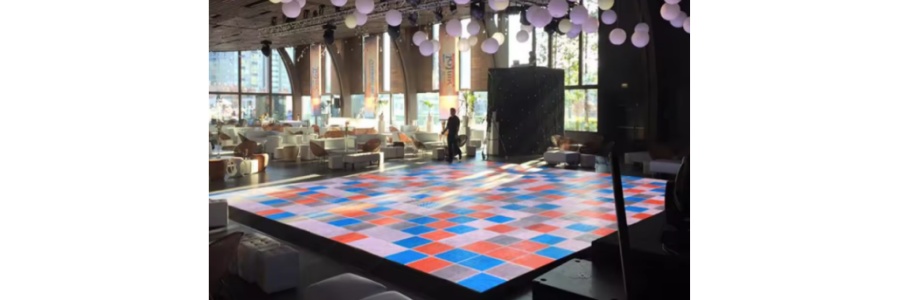

LED Screen Dance Floor

LED Screen Dance Floor is a modern high-tech installation that embeds LED display panels directly into the ground, replacing traditional dance floors.

Core Composition: Essentially, it is a massive, extremely sturdy LED display panel laid on the ground, capable of withstanding foot traffic and dancing.

Dynamic and Dazzling: It can display any digital image, video, or animation effect, moving beyond single colors or static patterns. It can present flowing rainbow waves, exploding starlight, geometric patterns synchronized with the beat, underwater worlds, flames, abstract art, brand logos, and even live footage.

Programmable Interactivity: Effects can be precisely controlled via computer programs, synchronizing with the rhythm of the music to create an immersive and stunning audio-visual experience.

Pixel Light Sources: Composed of countless tiny LED lights (pixels), with the resolution determining the fineness of the displayed image.

Core Price Factors

Pixel Density (Pixel Pitch)

Higher resolution (e.g., P2.5, P3.9) → denser pixels → higher cost

Lower-resolution models (e.g., P10, P16) are significantly cheaper.

Size

Priced per square meter (㎡): Typical unit price range: ¥3,000~¥20,000/㎡

Larger total area increases overall cost (bulk orders may qualify for discounts).

Load-Bearing Capacity & Durability

Commercial-grade (walkable/compression-resistant/slip-proof): Requires tempered glass cover + steel base → higher cost ↑

Exhibition-grade (lightweight/temporary use): Basic PC or acrylic cover → lower cost ↓

Functional Requirements

Basic display vs. interactive features (e.g., pressure sensors, music-synced effects): Interactive systems add 30%~50% to cost.

Waterproof rating (IP65 outdoor-grade costs 20%~40% more than IP54 indoor-grade).

Supporting Systems

Control software, video processors, cooling systems, etc., account for ~15%~25% of total investment.

Price Range Reference

Type Unit Price Range (per ㎡) Application Scenarios
Rental (short-term events) ¥800~¥3,500/day/㎡ Weddings, product launches, music festivals
Entry-level (P10, indoor) ¥3,000~¥6,000/㎡ Small bars/permanent installations
Mid-to-high-end (P3.9-P4.8) ¥8,000~¥15,000/㎡ Nightclubs/concert stages
Custom interactive models ¥12,000~¥20,000+/㎡ Premium commercial spaces/tech exhibitions

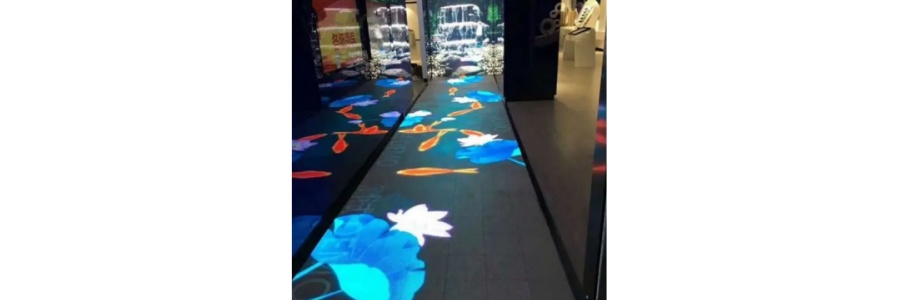

LED screen floor tiles are modular, interlocking LED panels designed to create customizable interactive floors. Unlike seamless LED dance floors, they prioritize flexibility and scalability, allowing users to build floors of any shape/size.

Led screen floor tiles

Key Features

Modular Design

Units typically 30×30cm or 50×50cm with interlock mechanisms.

Combine like “puzzle pieces” for rapid setup/removal.

Durability

Surface: Tempered glass or polycarbonate (IP65-rated for spill/dust resistance).

Load-bearing: 1,000–2,000 kg/㎡ (suitable for foot traffic/stages).

Visual Performance

Pixel pitch: P3.9–P10 (balance of resolution/cost).

Brightness: 800–1,500 nits (visible under ambient light).

Interactivity (Optional)

Pressure sensors enable real-time visual feedback (e.g., ripples under footsteps).

Sync with music/lighting via DMX or software.

Use Cases

Temporary Events: Concerts, exhibitions, pop-up stores.

Interactive Exhibits: Museums, brand activations (e.g., foot-triggered animations).

Stage Design: Modular stages with dynamic visuals.

Cost-Effective Alternatives: Budget-friendly option vs. full-floor systems.
